Specifications
Specifications

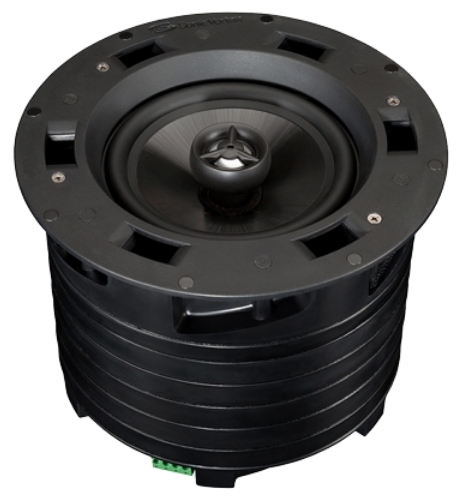

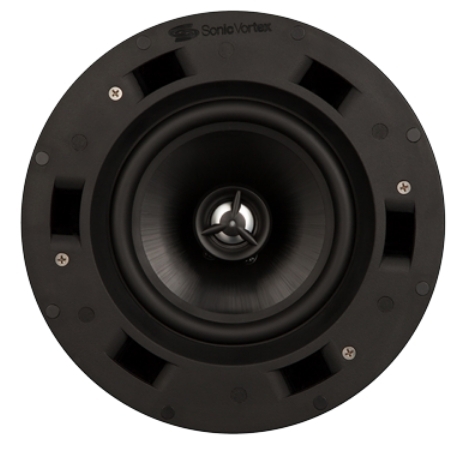

- Speaker Type – In Ceiling/In Wall 2-Way
- Woofer – 6.5″ Fluted Injected Poly
- Tweeter – 1″ Aluminum Dome
- Frequency – 48 Hz – 24 kHz
- Sensitivity – 89db
- Butyl Rubber Surround
- Sonic Vortex® Ported Transmission Line
- Magnetic Bezelless Grille – White; paintable
- Low Impedance – 8Ω

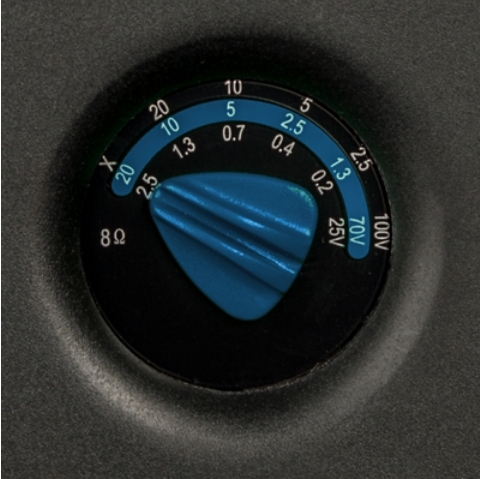

- 25V Taps – 0.2, 0.4, 0.7, 1.3, 2.5 Watts
- 70V Taps – 1.3, 2.5, 5, 10, 20 Watts
- 100V Taps – 2.5, 5, 10, 20 Watts
- Power Handling – In 8Ω Mode – 5-120W
- Connector Type – Four position plug-in screw terminal
- Speaker Weight – 7.10 lbs (3.22kg)
- Cutout – 8.4″ (214mm)
- Diameter – 9.4″ (239mm)
- Depth – 6.8″ (172mm)
- EZBracket Size – F
- Highlights – 25/70/100 Volt Switchable
