Specifications
Specifications

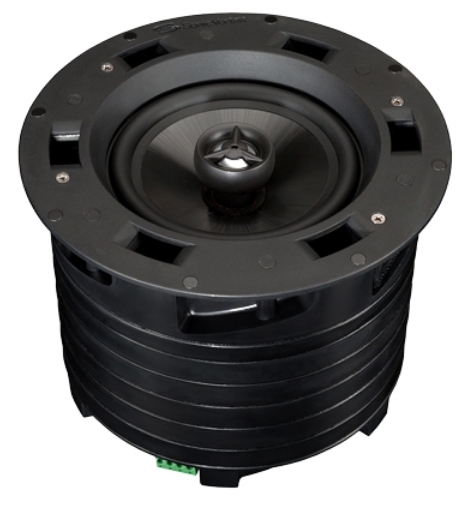

- Speaker Type – In Ceiling/In Wall 2-Way
- Woofer – 8″ Fluted Injected Poly
- Tweeter – 1″ Aluminum Dome
- Frequency – 35 Hz – 24 kHz
- Sensitivity – 92db
- Butyl Rubber Surround
- Sonic Vortex® Ported Transmission Line
- Magnetic Bezelless Grille – White; paintable
- Low Impedance – 8Ω

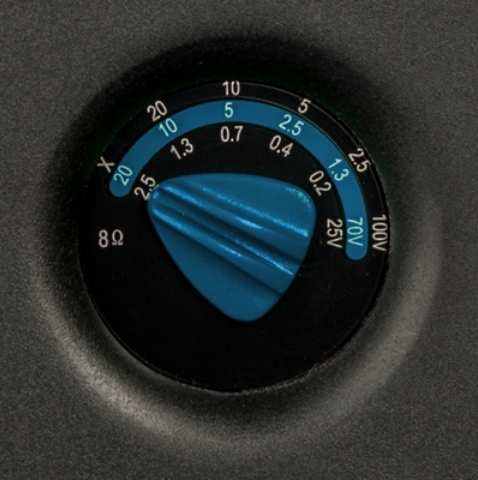

- 25V Taps – 0.3, 0.5, 0.9, 1.8, 3.5 Watts
- 70V Taps – 1.9, 3.8, 7.5, 15, 30 Watts
- 100V Taps – 3.8, 7.5, 15, 30 Watts
- Connector Type – Four position plug-in screw terminal
- Power Handling – In 8Ω Mode – 5-120W
- Speaker Weight – 8.38 lbs (3.8kg)
- Cutout – 10.3″ (261.5mm)
- Diameter – 11.3″ (284mm)
- Depth – 8.6″ (219.5mm)
- EZBracket Size – B
- Highlights – 25/70/100 Volt Switchable
