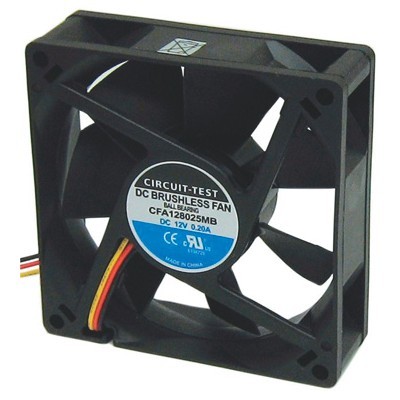

3.15" (80 x 80 x 25mm) 12Vdc Fan - 37CFM

CIR-CFA128025MB

Manufacturers Code: CFA128025MB,CO-8253,CO8253,TFD-8025N12C,TFD8025M12C

Locked Rotor Alarm Signal Output (yellow wire lead): Under normal conditions a locked rotor alarm signal outputs a constant signal frequency... if the fan stops spinning or "locks", it then outputs a "LOW" condition signal. If the fan starts spinning again, the "LOW" condition signal will go away.

•Dimensions: 80 x 80 x 25mm (3.15 x 3.15 x 1")

•Mounting Center: 71.5mm (2.82")

•Rating: 12VDC

•Current: 0.2 Amps

•Power: 2.4 W

•Bearing: Ball

•Speed: 2700 RPM

•Noise: 29.8 dBA

•Max Air: 37 CFM

•Max Pressure: 3.24 mmH2O

•Temperature: -30 to +75 C

•Hours: 35000-50000

•Termination: Wire leads

•Weight: 85g

•Impeller: Glass fibre reinforced plastic 94V-0 PBT

•Frame: Glass fibre reinforced plastic 94V-0 PBT

11 (EA) in Stock
CA$23.60
/ EA
